Saga IISERIES

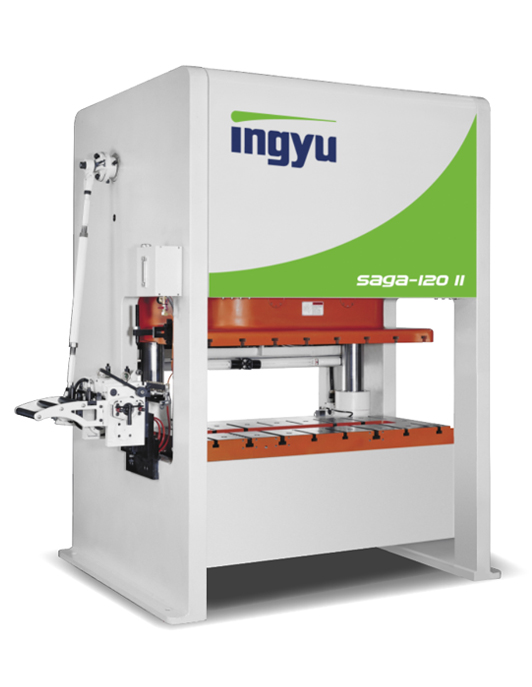

Two-point Precision Press

Capacity : 120 / 160 / 220 / 300 ton
Two-point Precision Press
DESIGN PERFORMANCE OPTION SPECIFICATION
Design of Saga Series Two-point Precision Press
One-Piece Frame
keep parallelism and vertical accuracy
Deflection during stamping is reduced to keep parallelism and vertical accuracy. A lower press frame helps to meet the factory height limit. The slide area is larger compared to the C frame press.
One-Piece Frame－Saga Series Two-point Precision Press
Guiding System
Plunger & 2 Guide Posts
Plunger system isolates the slide movement from the connecting rod left-to right movement. The guide post system absorbs the eccentric load during stamping.
Control System
User-friendly Control system
All information display on the control screen that makes setting and checking easily. Tooling data saves on the system to prevent damages from wrong settings.
  • 7 digit counter setting x 2
  • Die height indicator (0.01mm)
  • Crank angle indicator (clock/number)
  • SPM indicator (numeral)
Guiding System - Saga Series Two-point Precision Press
PERFORMANCE
Accuracy
Vertical accuracy within 0.01 mm
With superb guiding system, vertical accuracy keeps in 0.01 mm for each stroke length. Better vertical accuracy, longer die life time and better stamping parts quality.
Vertical accuracy within 0.01 mm
OPTION
Link Drive Design
Multi-Slide Motion
Choose slide motion mode for different product applications.
Saga Series Two-point Precision Press Option
SPECIFICATION
Model Saga-120 ll Saga-160 ll Saga-220 ll Saga-300 ll
  S L S L S L S L
Capacity tons 120 160 220 300
Limit of Capacity mm 5 6 6 7
Slide Stroke mm 120 200 140 220 160 250 180 280
Press Speed spm 40 - 70 30 - 50 30 - 55 30 - 45 25 - 50 25 - 40 25 - 50 20 - 40
Shutheight mm 350 400 400 450 450 500 500 550
Area of Bolster mm 1660 x 680 1860 x 780 2160 x 840 2420 x 920
Thickness of Bolster mm 140 160 180 200
Area of Slide mm 1600 x 550 1800 x 600 2100 x 700 2400 x 800
Slide Adjustment mm 90 100 120 140
Main Motor hp 15 15 20 30
Dimension of Press
Height of Press mm 2770 2990 3300 3800
Height for Operation mm 890 910 1000 1130
Height for Scrap out mm 200 150 150 150
Width of Press mm 2100 2340 2680 2980
Depth of Press mm 1700 1900 2100 2300
Weight of Press tons 14 19 23 32
