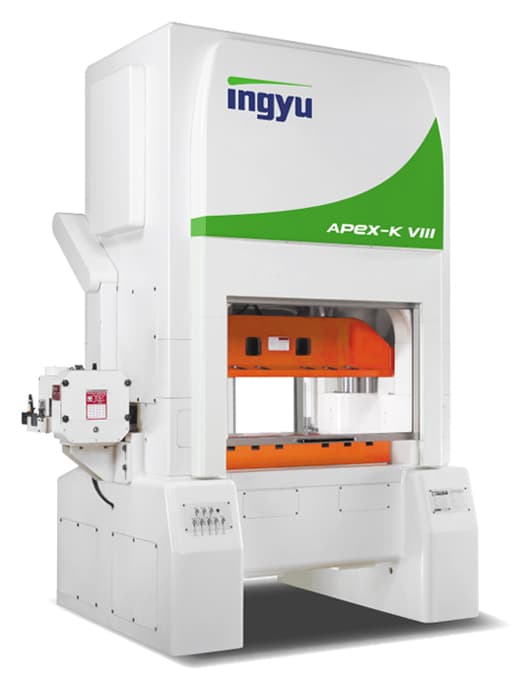

Stroke Adjustable
Friendly Operation
8 different stroke lengths can be changed easily. The shut height and press speed will adjust synchronously through the SIEMENS control system.
Knuckle Type
Design of Knuckle Structure
Slide velocity decreases towards BDC to reduce the impact of stamping, noise and vibration.
Cast Metal
2-Set Frame of Cast Iron Ensure Verticality
Dual plungers bear up more upward eccentric load during stamping. Hydro-static bushings can stand with higher thrust, decrease friction area, and suppress heat expansion to prevent the wear of bearing throughout the years.
Guiding System
2 Plungers and 4 Guide Post with Hydro-Static Bushings
Dual plungers bear up more upward eccentric load during stamping. Hydro-static bushings can stand with higher thrust, decrease friction area, and suppress heat expansion to prevent the wear of bearing throughout the years.
PERFORMANCE
CONTROL
Main Page
Pressure Monitor (Option)
Service Log
Temperature Monitor (Option)
Trouble Shooting
Die Information
Alarm Records
Job Order
Load Monitor
SPECIFICATION
| Model | APEX-K80A | APEX-K125A | |
|---|---|---|---|
| Capacity | tons | 80 | 125 |
| Slide stroke | mm | 16 / 22 / 28 / 34 / 40 / 48 / 56 / 64 | 16 / 22 / 28 / 34 / 40 / 48 / 56 / 64 |
| Press speed | spm | 200 - 700 (Accroding to stroke) | 200 - 600 (Accroding to stroke) |
| Shut height | mm | 340 - 360 (Accroding to stroke) | 360 - 380 (Accroding to stroke) |
| Area of bolster | mm | 1200 x 750 | 1400 x 850 |
| Area of slide | mm | 1200 x 500 | 1400 x 640 |
| Shut height adjustment | mm | 50 | 50 |
| Main motor | hp | 40 | 50 |
