Crank Type
Crank Support and Hydro-Dynamic Bushing

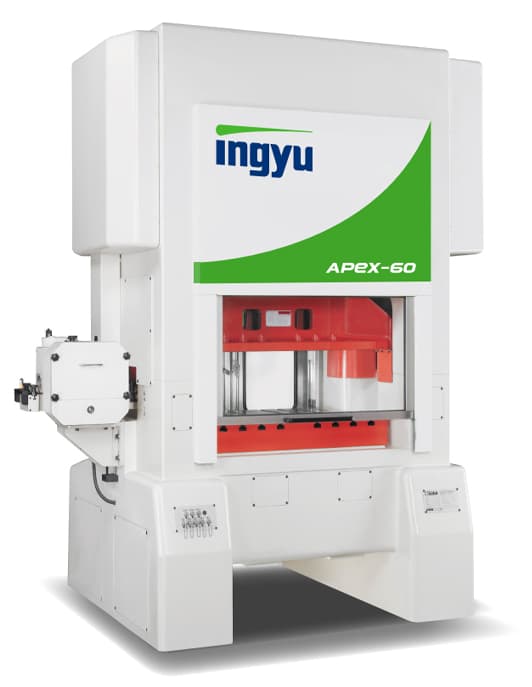

Apex 45~60
Bearings are applied both at supporting & connection. The clearance is smaller and B.D.C is more accurate.
Apex 80~125
Hydro-dynamic bushings can stand with thrust and decrease friction area. It can suppress heat expansion to prevent the wear throughout years.
Cast Metal
2-Set Frame of Cast Iron Ensure Verticality
The guiding holes are cast at a bed and machined at the same time.
Guiding System
2 Plungers and 4 Guide Post with Hydro-Static Bushings
Dual plungers bear up more upward eccentric load during stamping. Hydro-static bushings can stand with higher thrust, decrease friction area, and suppress heat expansion to prevent the wear of bearing throughout the years.
PERFORMANCE
CONTROL
Main Page
Pressure Monitor (Option)
Service Log
Temperature Monitor (Option)
Trouble Shooting
Die Information
Alarm Records
Job Order
Load Monitor
SPECIFICATION
| Model | APEX-45 | APEX-60 | APEX-80 | APEX-125 | |
|---|---|---|---|---|---|
| Capacity | tons | 45 | 60 | 80 | 125 |
| Slide Stroke | mm | 30 | 30 | 30 | 30 |
| Press Speed | spm | 900 | 800 | 600 | 500 |
| Shutheight | mm | 275 | 320 | 360 | 380 |
| Area of Bolster | mm | 800 x 550 | 1000 x 650 | 1200 x 750 | 1400 x 850 |
| Area of Slide | mm | 800 x 400 | 1000 x 450 | 1200 x 540 | 1400 x 600 |
| Shut height adjustment | mm | 50 | 50 | 50 | 50 |
| Main Motor | hp | 15 | 20 | 30 | 30 |
| Dimension of Press | |||||
| Height of Press | mm | 2500 | 2750 | 3100 | 3430 |
| Height for Operation | mm | 850 | 900 | 1000 | 1060 |
| Width of Press | mm | 1400 | 1650 | 1930 | 2200 |
| Depth of Press | mm | 1200 | 1400 | 1600 | 1800 |
| Weight of Press | tons | 8 | 12 | 17 | 25 |
